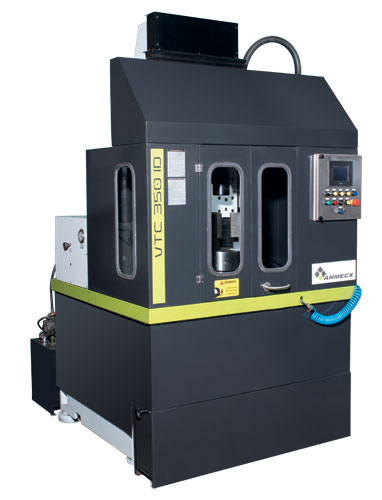

Vetical Boring Machine VTC - 350 - ID
Machine Capacity : Bore range ø70mm to ø140mm and Length 350mm
Machine Control : PLC withTouch Panel HMI
Spindle Size & Type : A2-8 Cartridge type Spindle with Taper Roller Bearing
Spindle Speed & Power : Veriable up to 600 r.p.m. & 7.5Kw ( 10 HP )
Axis Type : Highly rigid Roller type LM Guideways with Precision Ground Ballscrew moving by AC Servo Motor
Machine Lubrication : Automactic Centralized Oil Lubrication System
Job Clamping : Hydraulically operated Power Chuck with rotary Cylinder and special Extended Jaws
Boring Bar : Twin cutting edge type with adjustable Insert Cartridge
